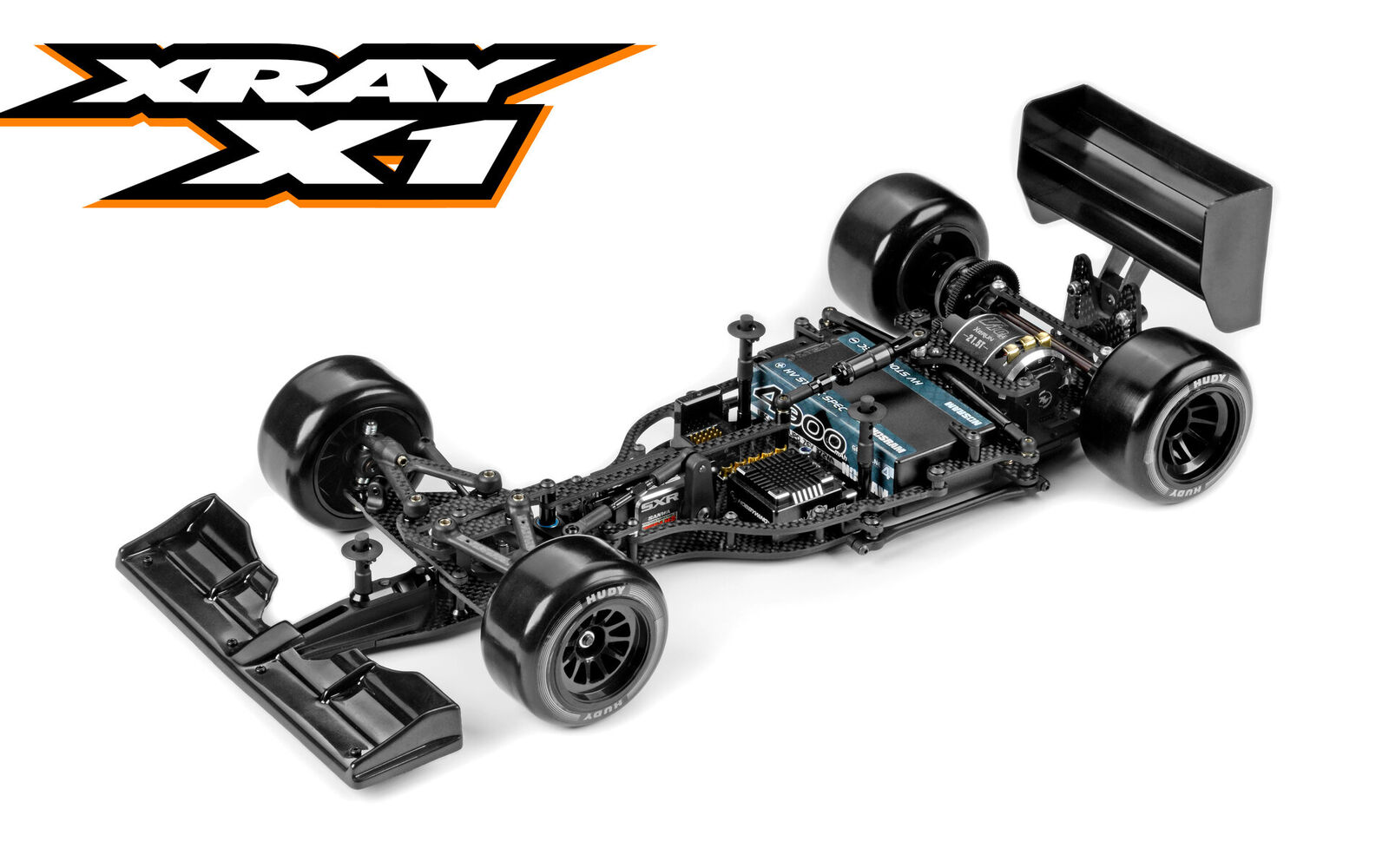

XRAY X1'25 - LUXURY 1/10 FORMULA CAR KIT - XY370709

XRAY X1'25 - LUXURY 1/10 FORMULA CAR KIT - XY370709

The XRAY X1'25 Formula 1 sets new standards! With a completely revised, one-piece and narrower chassis design, as well as an optimized POD concept, the 25 version offers even more consistent handling, improved tweak resistance and reduced air resistance in corners.


All New Features 2025

• All-new one-piece chassis design with more consistent handling in all conditions and improved tweak resistance
• Narrower chassis shape reduces chassis drag during cornering
• Rear POD concept on top of chassis for less drag and improved tweak resistance
• Adjustable POD angle controlled by set screw at the rear of chassis for fine tuning
• Rear spring location improves forward traction with increased adjustability and lower CG
• Rear droop adjustment through rear POD spring tension that sits in a special composite adjuster
• Universal rear spring nut holder works for both conical and linear springs
• 2-piece lower pod plate mounts to the bulkheads, offering droop and pod angle adjustments with support for the side springs
• Ultra-light, lower CG bulkheads are foundation of new POD system
• Left side bulkhead has mounting holes incorporated to mount optional motor cooling fan
• Lowered pivot holder and small diameter pivot ball offer lower roll center positions and greater adjustment range
• Carbon Fiber top plate for center shock and side damper mountings
• New rear carbon side spring brace aligns with new POD geometry
• Composite Snap Lock™ bushings press into carbon fiber parts for secure and reliable hardware installation
• All-new spring-free center shock absorber with 1-hole piston provides exceptional bump handling, low maintenance, and helps lower CG.
• Side braces with a narrower design save weight and leave more space for electronics and also allows better body fitment
• Narrower side brace mounting holders use M2.5 screws for weight savings
• Aluminum side link holders with 2-pin design for more rigidity and improved tweak resistance
• 2-pin carbon fiber side link plates integrate with aluminum holders for reliable alignment and offer 3 side link front pivot mounting positions for maximum adjustability
• New wing mounting system which saves weight and provides cleaner design and improves the durability and track width adjustment possibilities
• New adjustable wing angle for greater adjustment possibilities
• New redesigned lower arms with more material around the holes for improved durability in serious crashes
• New battery mounting system works with rear brace and front backstop for convenient installation
• Two body post mounting position options for different battery packs allows for different configurations
• Aluminum side spring retainers for more precise and consistent side spring mounting
• Most commonly used soft front springs included in kit for best all-around starting set-up

Requires all electronics, Tures and Body Shell.
