KONECT Combo crawler brushed torsion 20T + QUICRUN-WP-1080 G2-BRUSHED- KN-PRO-1080-20T
SKU: KN-PRO-1080-20T
KONECT Combo crawler brushed torsion 20T + QUICRUN-WP-1080 G2-BRUSHED- KN-PRO-1080-20T
NEW: the Torsion version is equipped with a twisted stator which allows more torque, more power and a lower operating temperature.

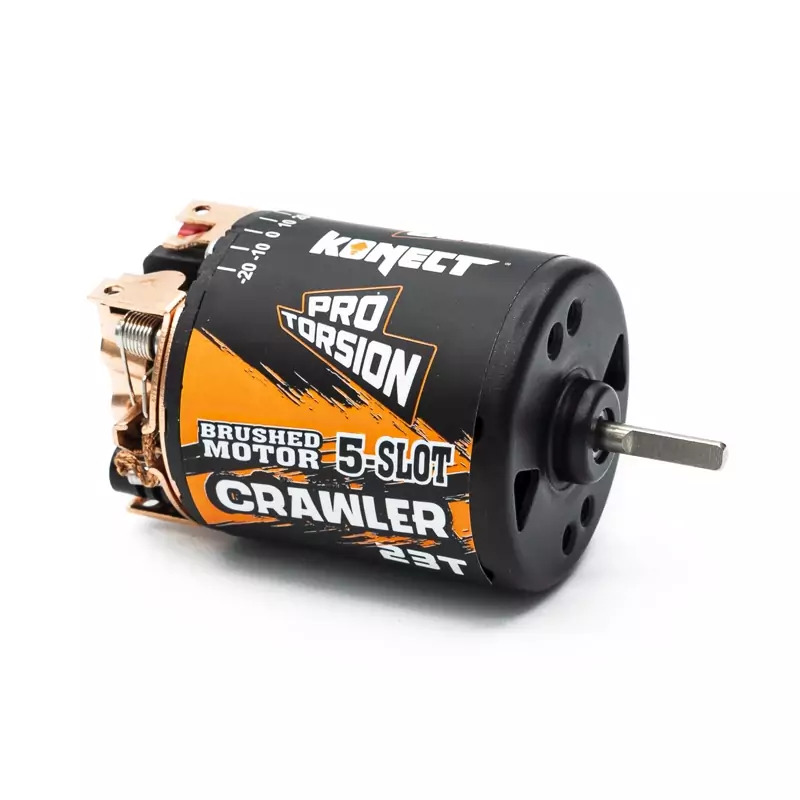

Konect 5 slots brushed motors are dedicated to scales and crawlers. These motors provide a lot of flexibility and torque. They are fitted with ball bearings at the front and rear. The timing is adjustable to adapt the engines to its transmission. Finally, to facilitate maintenance and cleaning, these motors are completely removable.
Chart 5-slot vs traditional brushed motors
5-slot 16T motor corresponds to a traditional brushed motor from 27 to 35T
5-slot 20T motor corresponds to a traditional brushed motor 35 to 40T
5-slot 23T motor corresponds to a traditional brushed motor 40 to 45T
Specs
Batteries: 2S LiPo / 6-9 NiMh cell
Diameter: 36mm
Length: 53mm
Axle diameter: 3.175 mm
Weight: 169g

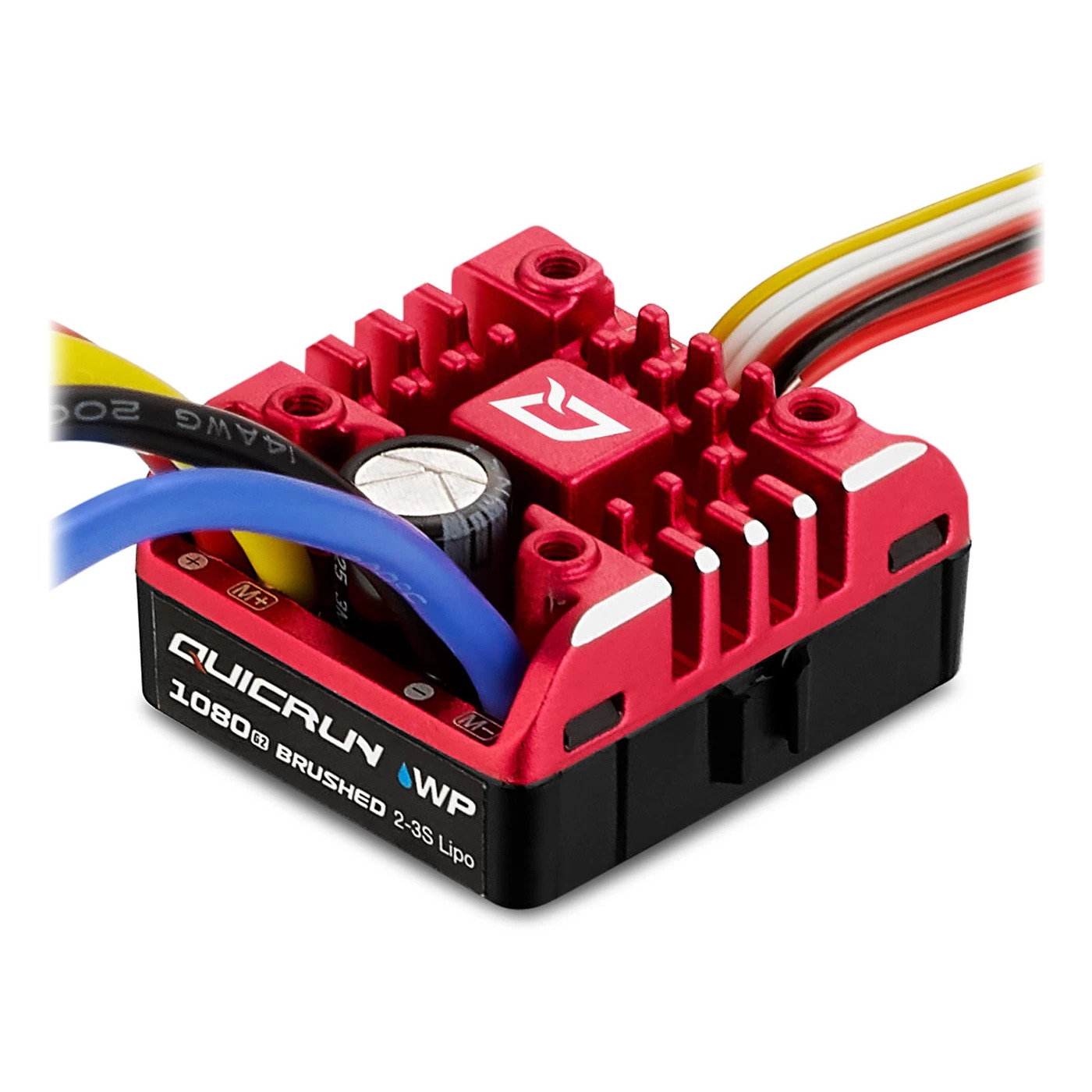

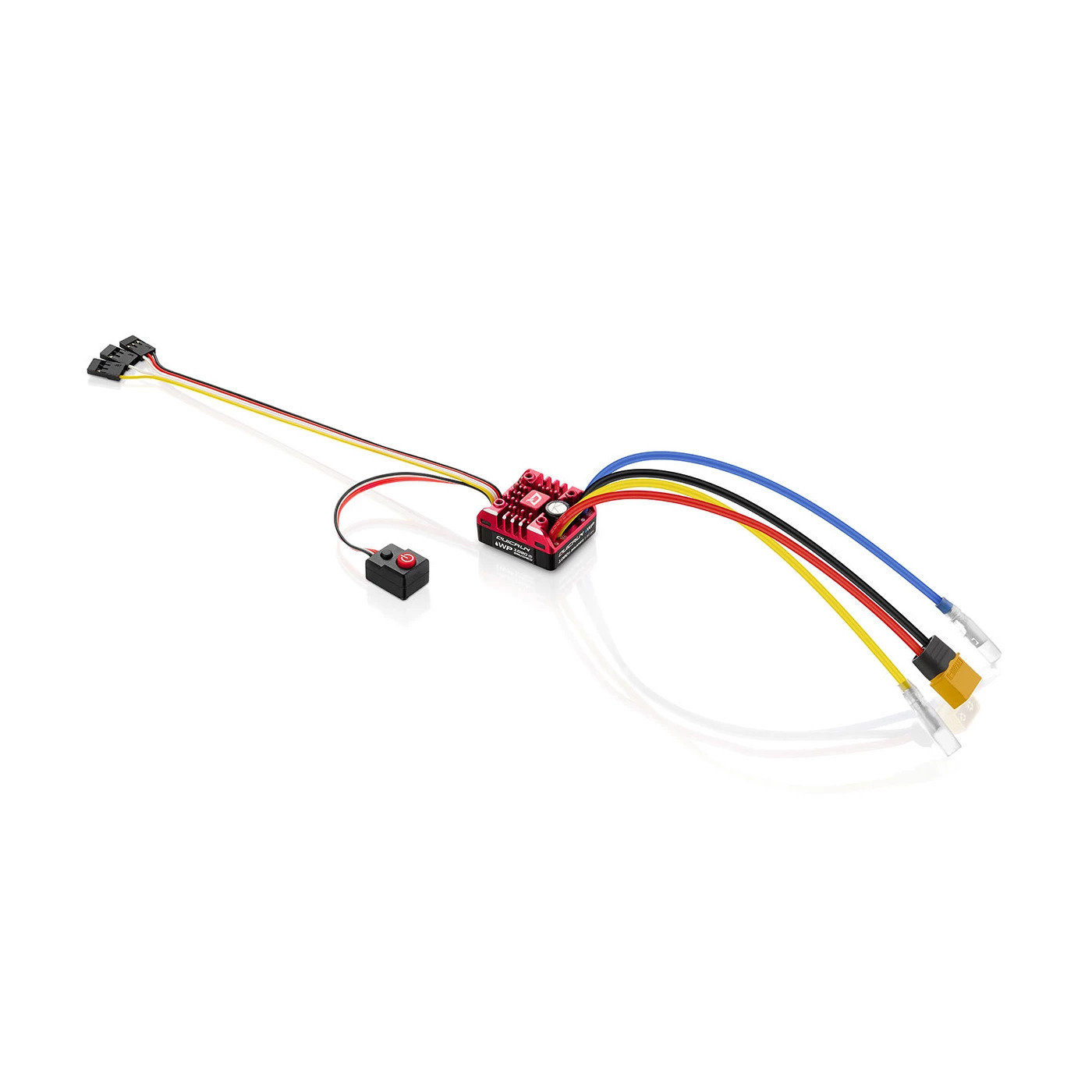

QUICRUN-WP-1080 G2-BRUSHED
Overview
With its G2 version, the Hobbywing Quicrun WP1080 is the first controller with a real "Car Mode". This means that the direction of the motor can be switched in real time. This is done by using the AUX channel on the transmitter and ensures a unique driving experience that has never been seen before. The handbrake force can also be adjusted in real time and via another AUX channel, which would otherwise have to be changed via external programming with other controllers.
Compared to the previous model, the Quicrun WP1080 G2 controller offers different upgrades. For example with the BEC, because not only 6V and 7.4V can be set in the G2 version - 8.4V at 6A are now also possible. A whopping 15 adjustable parameters and over 90 values also ensure that the controller can be completely adapted to your own needs.
Features
- Specially designed for 1/10 rock crawlers
- BEC: 4A continuous and up to 6A peak load, adjustable to 6V, 7.4V or 8.4V
- Waterproof according to the IP67 standard
- 15 menu items for personal controller settings
- Perfectly adjustable drag brake
- Separate programming port
- Small, light and yet robust
- XT60 connector installed
Specifications
- Type: brushed
- Current continuous/short: 80A/400A
- Cell count: 2-3S LiPo / 5-9 cells NiMH
- BEC Switch Mode: 6V/7.4V @ 4A, 6A peak
- Battery connector: XT60
- Dimensions: 37.2x31.9x18.4mm
- Weight: 70.2g
- Waterproof: Yes
Specifications
| ESC (Electronic Speed Controller) | |
|---|---|
| For Motor Type: | Brushed |
| Max Voltage: | 7.4 |
| Continuous Amps: | 40 |
| Motor Connectors: | Bare Wires |
| Battery Connector: | XT60 |
| LiPo Cut-off: | Yes |
| Programmable: | Yes |
| Waterproof Design: | Yes |
| Cooling Method: | Fan |
| BEC Voltage: | 6v |
| Dual Motor: | No |
| SKU | KN-PRO-1080-20T |
| Brand | KONECT |
