Junsi iCharger DX6 Lilo/LiPo/Life/NiMH/NiCD DC Battery Charger (6S/50A/1500W)

SKU: IC-DX6

Share:

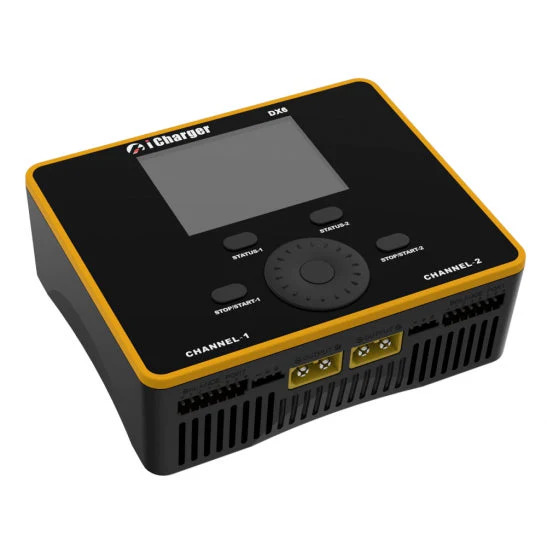

Junsi iCharger DX6 Lilo/LiPo/Life/NiMH/NiCD DC Battery Charger (6S/50A/1500W)


With a maximum output of 1500W, the DX6 is ready to match up with any high-power charger, at a fraction of the size and cost. Charge at up to 32A per channel (50A total) on LiPo batteries up to 8S. With a balance current of a full 2A, charges will finish faster than ever. The full color IPS display provides a wealth of information at a glance, using the operating system perfected on the larger Duo iChargers.

The DX8 can charge at up to 32A, and it can also discharge at up to 32A! While similar size chargers limit their discharge capabilities, the DX6 offers iCharger's trademark support for regenerative discharge, allowing the charger to provide a full 1500W of discharge capability when powered from a suitable battery bank.

Despite its small size and low price, this is still a full featured iCharger, with multi-chemistry support and all the depth of settings you've come to expect, including an improved software interface for recording battery data and upgrading firmware.

Brief:

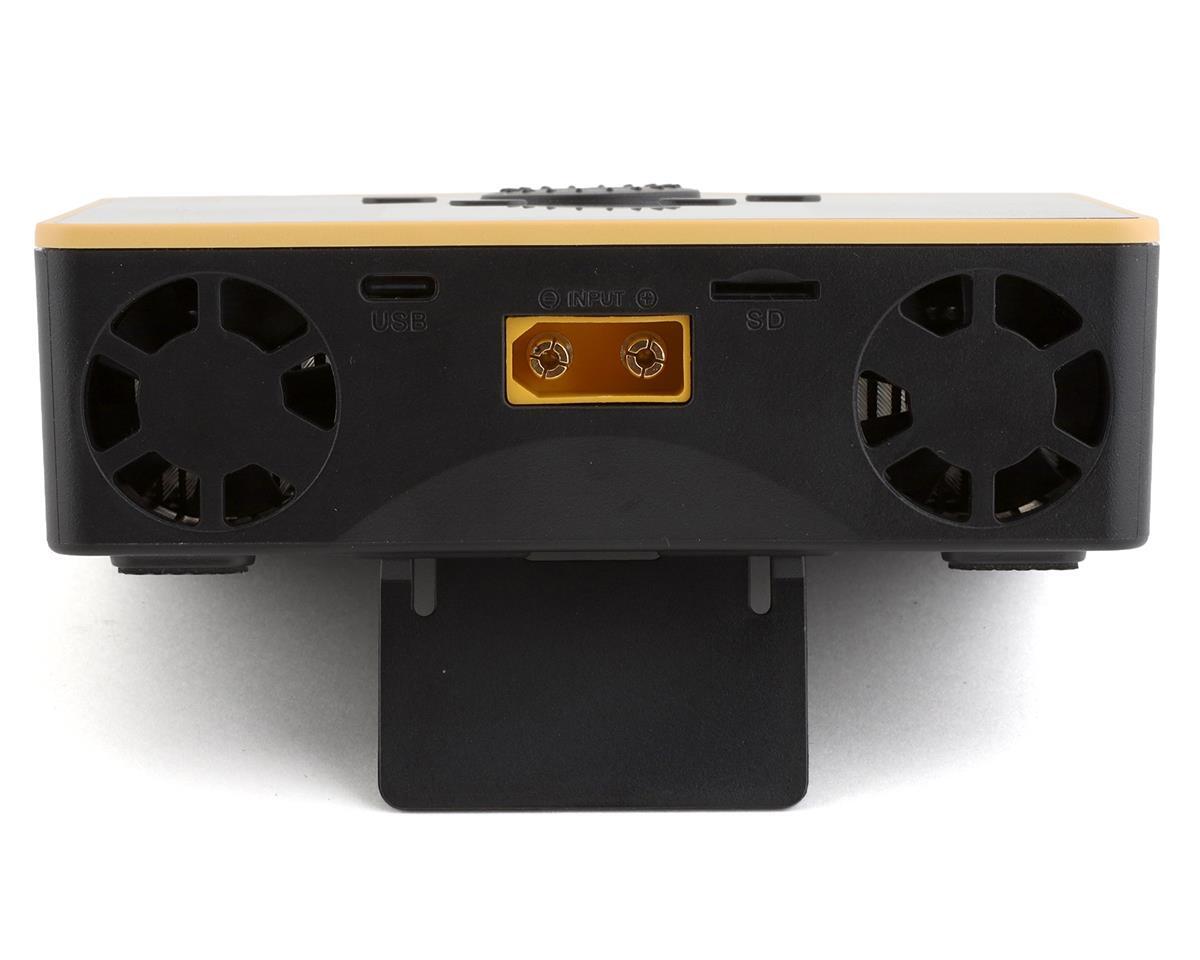

Notice the XT90 plug on the front and the new PD USB-C housing. The first haptic impression is very good, the operation goes very well from the hand and the keys and the wheel have a pleasant pressure point. At first glance, the menu is identical to the X and DUO series - Those who already call a Junsi Charger their own will not have to get used to it for long.



Specifications:

Charge Power (Max) 1500W (max 900W per channel)
Charge Current Range 0.05-32A
Current Drain (Balancing) 2A
Balance Accuracy 10mV
Internal Discharge (Max) 60W (40W max per channel)
External Discharge (Max) 1600W (max 900W per channel)
Regenerative Discharge (Max) 1500W (max 900W per channel)
Discharge Current Range 0.05-32A
LiPo/LiIo/LiFe 1-6S per channel
NiCd/NiMh Cell Count 1-15S per channel
Pb Battery Cell Count 1-12S per channel
Temperature Control (Intel.) Yes
PC Connectivity USB-C
USB Charge Type-C PD 5V/3A, 9V/2A, 12V/1.5A
Warranty 1 year
Input Voltage 9-34V DC
Input Current Limit 65A
Dimensions 112x92x40mm
Weight 360g

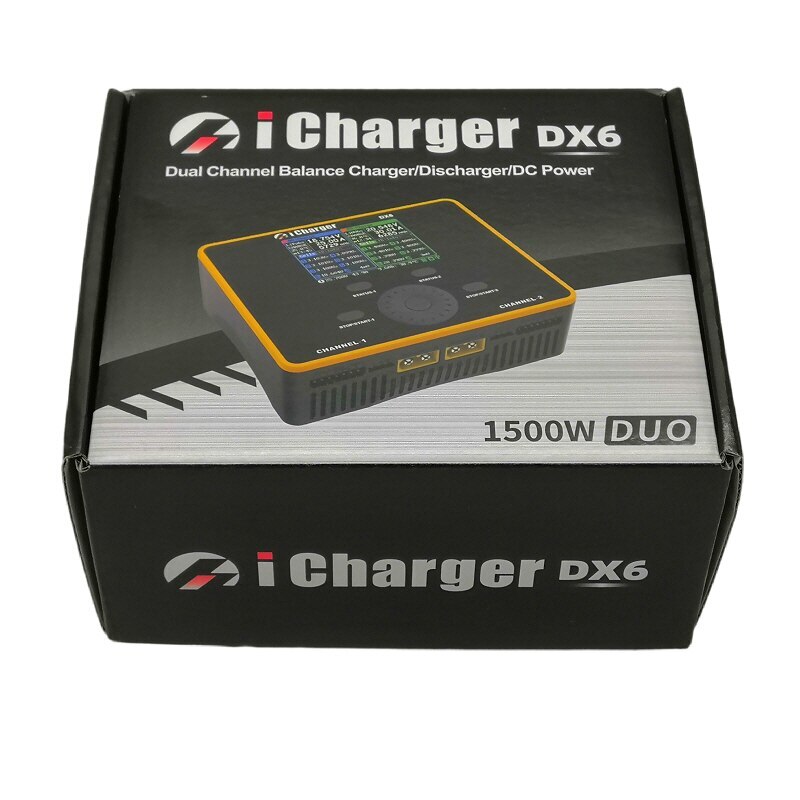

Packaging Included:

1x iCharger DX6
